The function of high-pressure ball valves is to control fluid movement. It is durable and commonly used in high pressure settings to a maximum pressure of 700 bars. The material of the ball valve is carbon steel.

Various system installation requires different connection type. The connection types are;

BSPP
NPT
Compression type (DIN 2353/ISO 8434-1)
Welding end
Flange end

There are also 3 checklists that you have to take note during the installation process.

Before Installation

Proper checking to ensure the ball valve fits the intended usage & design
Professional execution by qualified personnel
Examination for any damage, contamination, or residue in pipelines
Rinsing of pipelines prior installation

During Installation

Avoid external tensions or vibrations
Use the proper tool to screw
Prevent overheating of seals for ball valves with welded ends
Tighten the screws crosswise

After Installation

Test the valve through switching
Do not release or unscrew the installed ball valve
Ensure ball valve and pipe system are fully empty to avoid leakage

Manufacturer	MHA-ZENTGRAF
Part number	V-B-H-G-N-02-500-112A
Item Weight	400 g
Product Dimensions	2.5 x 4.15 x 1.76 cm; 400 g
Item model number	BKH-DN6-1/4"NPT-112A
Size	1/4"NPT
Material	Carbon Steel
Shape	Rctangular
Installation Method	Screw-In
Item Package Quantity	1
Maximum Pressure	500 Bars
Measurement System	Inch
Specification met	ISO 8434
Specific uses	Professional
Included components	Handles, Valve
Batteries Included?	No
Batteries Required?	No

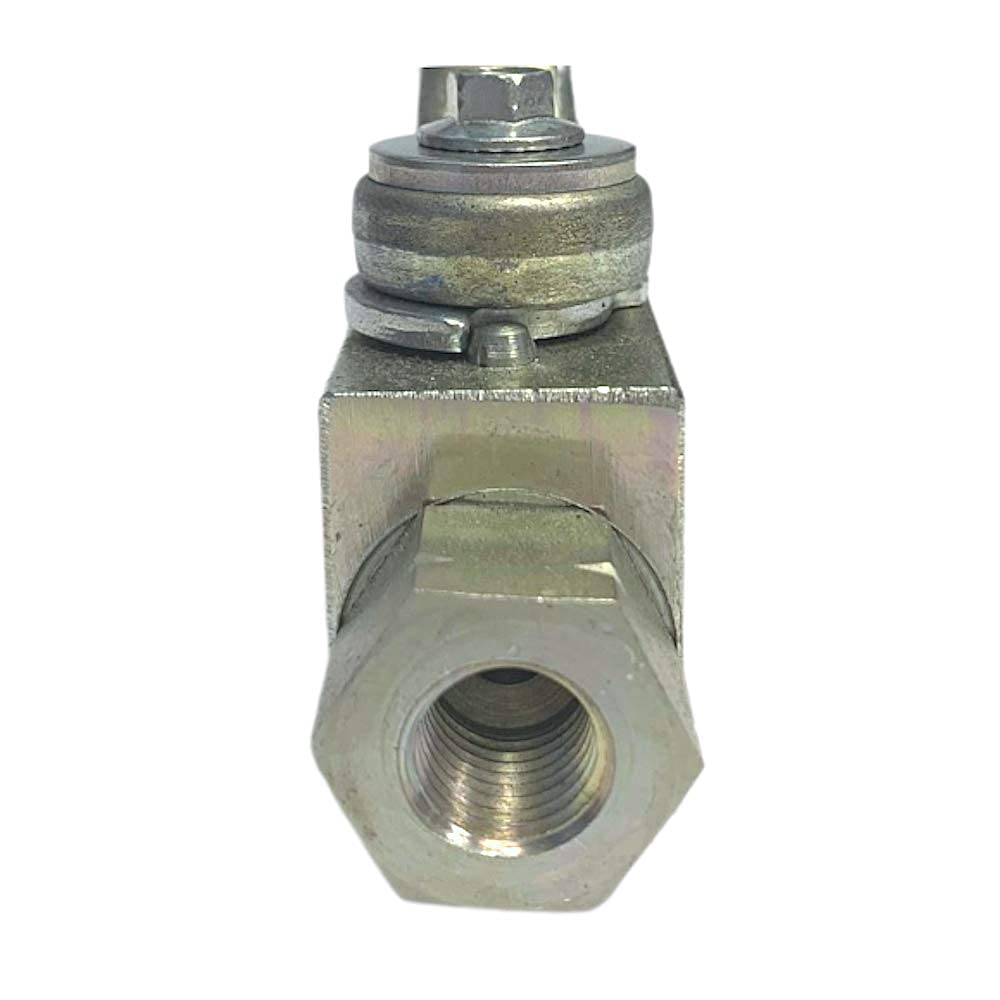

MHA-Zentgraf Hydraulic Carbon Steel High Pressure Ball Valve, 1/4” NPT Female Valve, up to 500 Bar, BKH Type Flow Control Valve, 2 Port Shut-Off Valve for Water, Oil, and Gas
