Question 1

Is there a way to confirm it's v2 with sine wave and not v1?

Accepted Answer

In the description on my order it is listed as V2. On a scope, with the meter open circuit, the test waveform is a rounded square wave. When connected to a 100 ohm resistor, the waveform is more of a triangle wave. When connected to a capacitor, it is somewhere between a triangle and a sine wave.

Question 2

can this meter perform a leak test on motor start capacitors?

Accepted Answer

No. This meter is for one test only - ESR of a capacitor. It does not perform any other tests.

Question 3

Values in 35v and higher columns decrease as you go down, columns for 10,16,25v decrease, then go back up.  is this a typo?  hint: look for ".12"

Accepted Answer

Better to use on of the ESR charts you can find online, not the one printed on the case (whether it's right or wrong)

Question 4

what is better about v2 (version 2) of this MESR-100 meter for the extra $10 it costs over the original version?

Accepted Answer

Compare MESR100 old V1 and new V2 Improvement: For an extra $10 I would get version 2 which is what I have now.

1)      Change square wave to sine wave 100 KHz, reduce square wave’s high frequency component, and affect the reading passing the test leads and capacitor.
2)      Higher Resolution up to 0.001 ohm.
3)      128X64 dot matrix LCD, with more larger value display and information
4)      Embedded 25V capacitor table at LCD, auto display the capacitor is good or bad reference to common 25V electrolytic capacitor.
5)      New plastic case, curve design for hand carrying. New stand for 60 degree stand on desk.
6)      Use 2X AA battery, more convenience and longer battery life than 9V battery.
7)      Support external USB power, using standard micro-USB port.

ASIN	B00GYSFOM6
Best Sellers Rank	#100,640 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #15 in Ohmmeters
Brand	Signstek
Brand Name	Signstek
Color	black
Colour	black
Customer Reviews	4.4 out of 5 stars 689 Reviews
Item Weight	0.5 Pounds
Item weight	0.5 Pounds
Manufacturer	Signstek
Maximum Operating Voltage	100 Volts
Measurement Type	LCR Meter
Min. Operating voltage	15 Millivolts
Minimum Operating Voltage	15 Millivolts
Model	US-171024-02
Number of Items	1
Part Number	US-171024-02
Power Source	Battery Powered
Power source	Battery Powered
Specification Met	IEC 61010-1
Style	Modern
Style Name	Modern
UPC	710219731090
Unit Count	1 Count

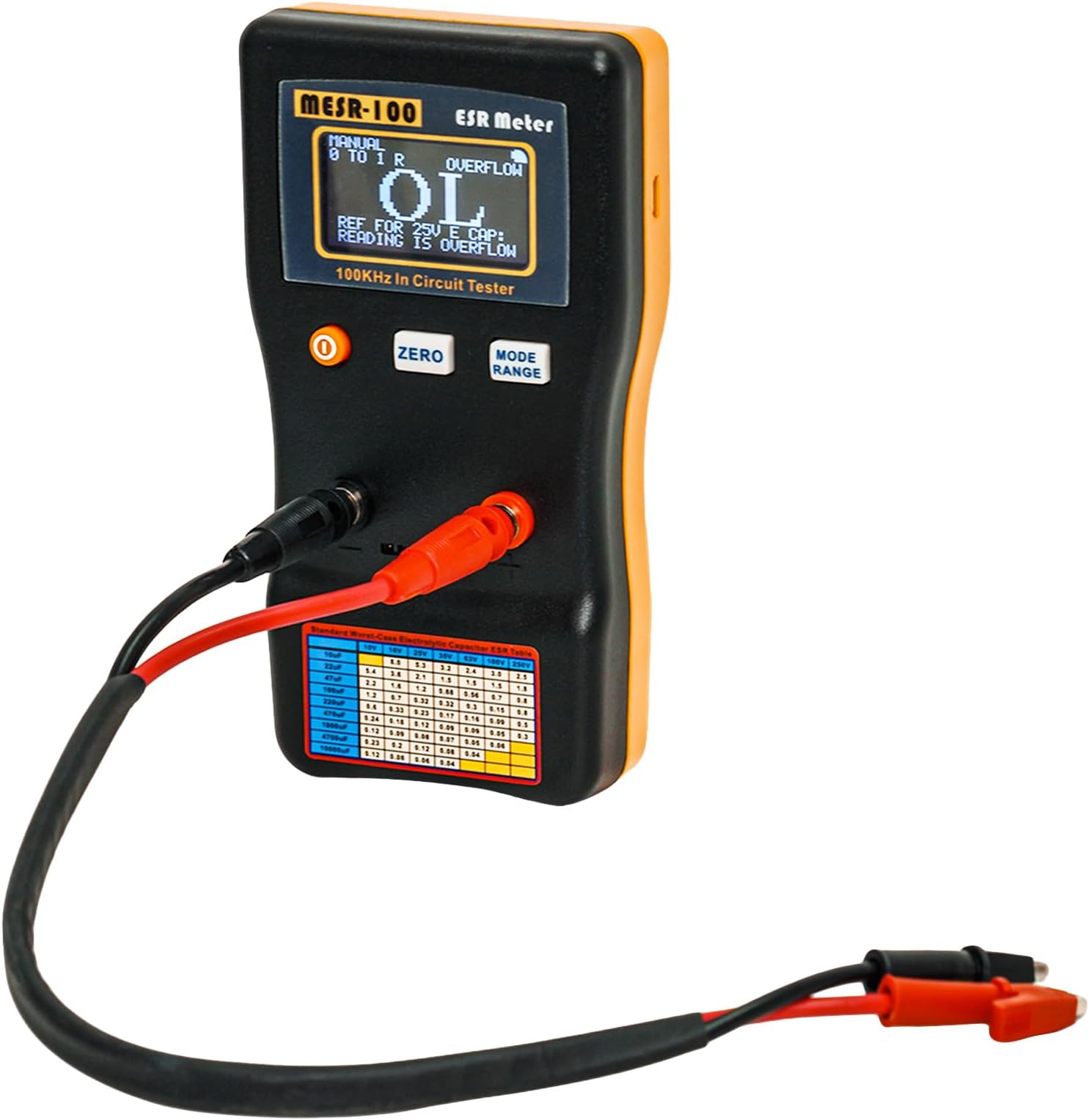

Signstek MESR-100 V2 Auto Ranging in Circuit ESR LCR Meter Capacitor/Low Ohm Meter Up to 0.01 to 100R, Support in Circuit Testing
