Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

NX4024T032 is a powerful 3.2'' HMI, which is member of Nextion family. Features include: a 3.2" TFT 400x240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

3.2" Nextion NX4024T032 HMI TFT Intelligent Display Module

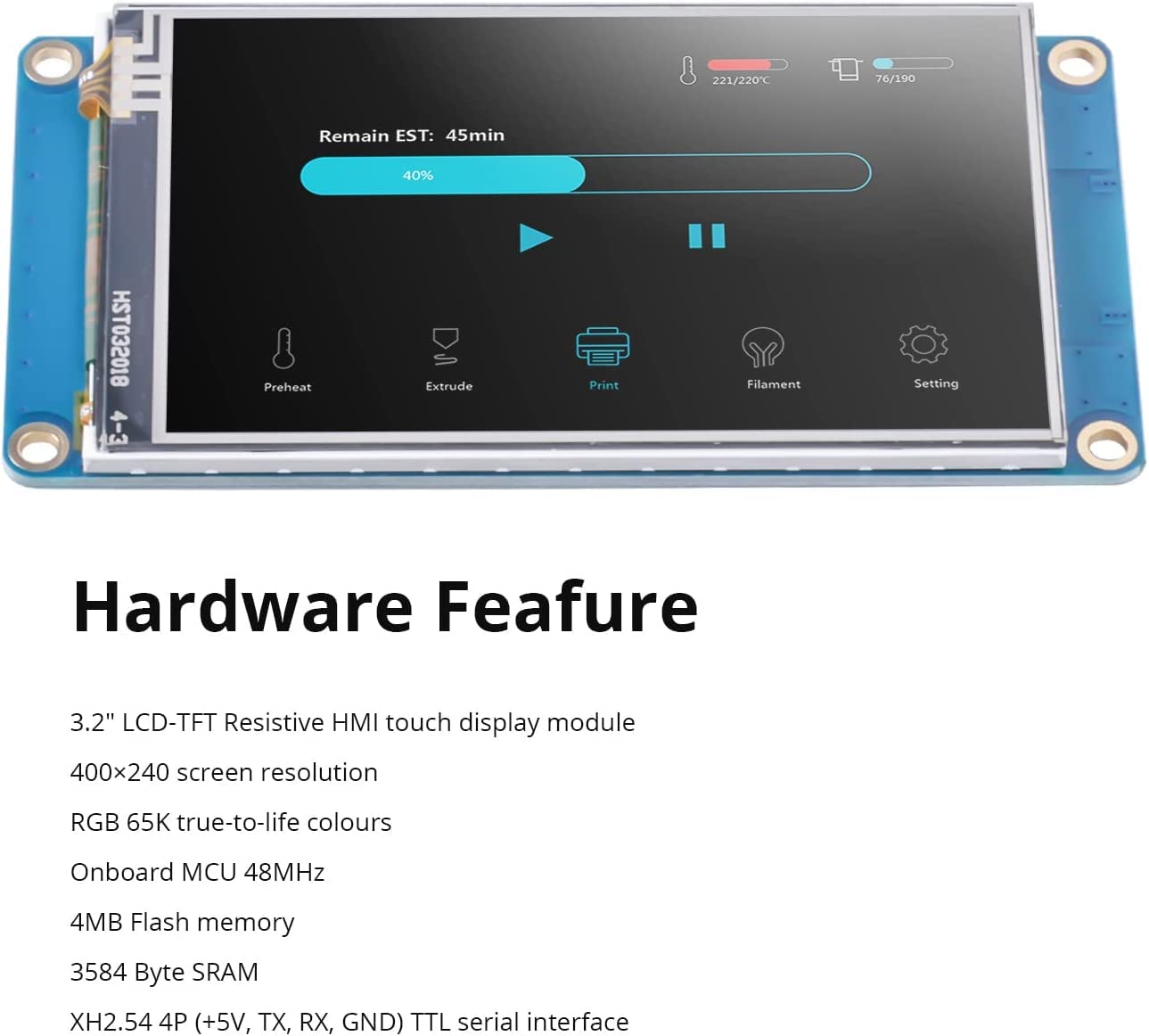

Features:

400 x 240 Resolution
TFT Screen with integrated 4-wire Resistive Touch Panel
RGB 65K true to life colours
Easy 4 pin interface to any TTL Serial Host
4M Flash memory for User Application Code and Data
Onboard micro-SD card for firmware upgrade
Recommended Power Supply: 5V, 500mA, DC
Board Size: 95(L)×47.6(W)×5.8(H)
Display Size: 3.2 Inch
Weight: 53gm

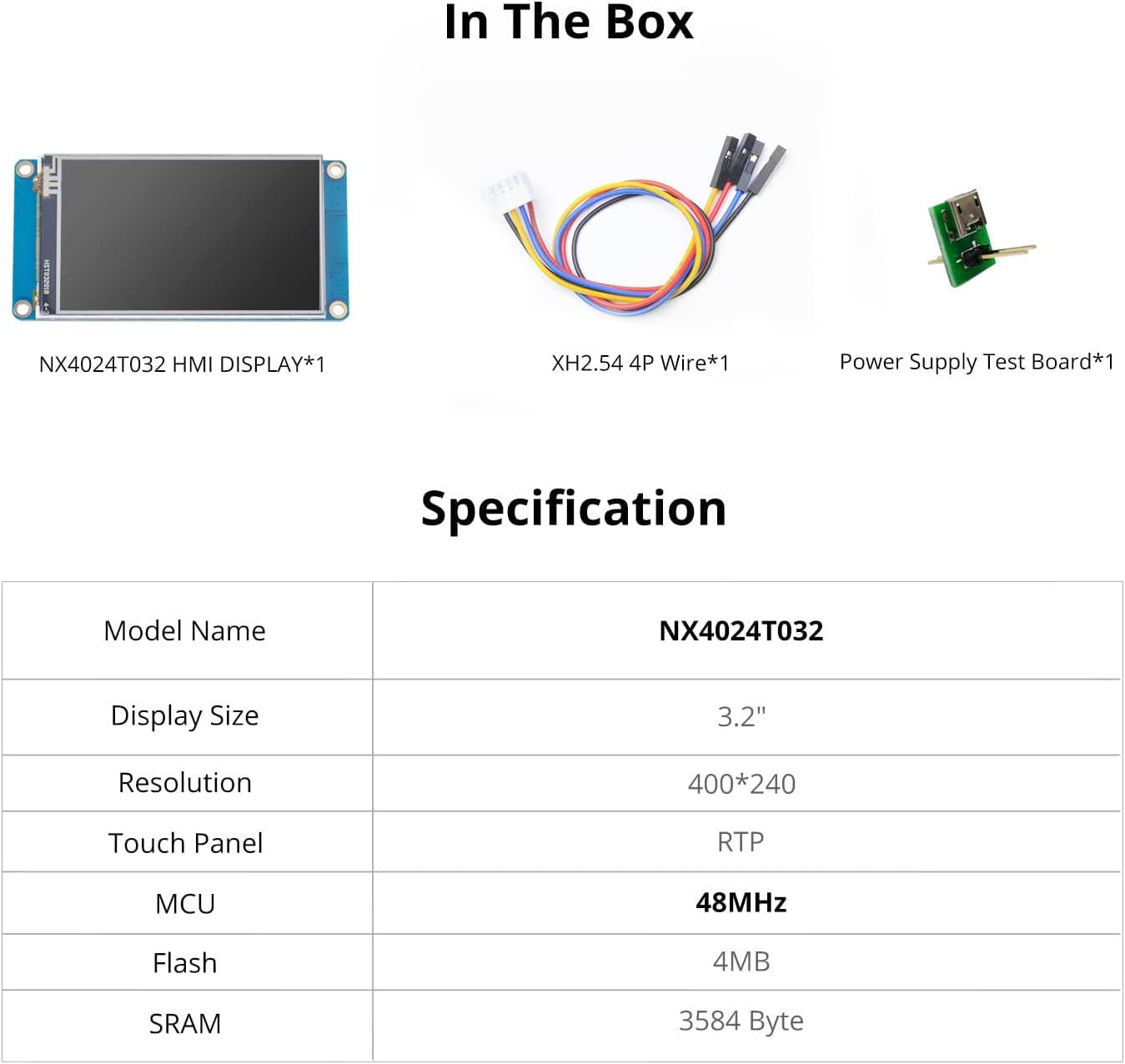

Package Includes:

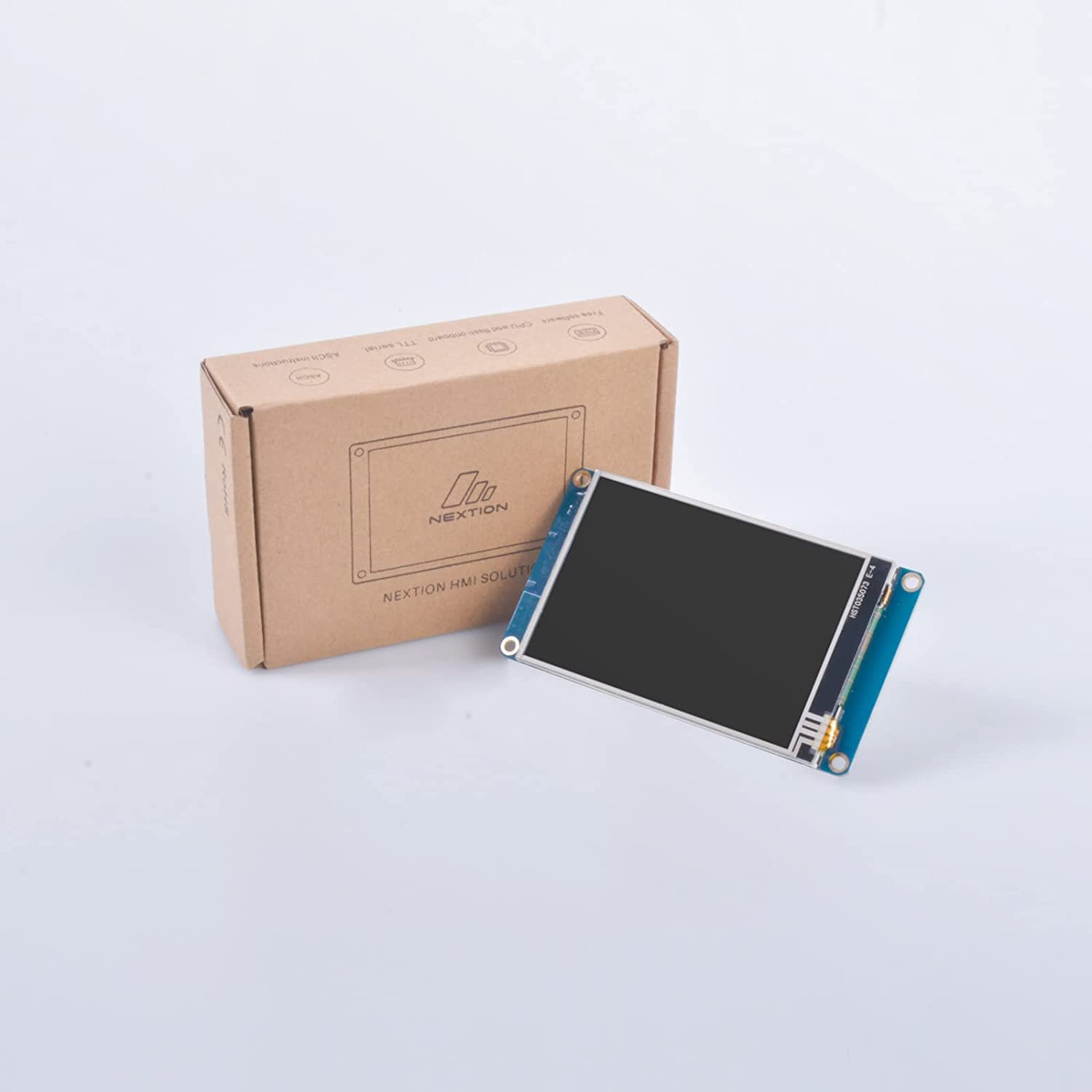

1 x Nextion NX4024T032 3.2" HMI TFT LCD Touch Display
1 x Connecting Cable
1 x Power Supply Test Board

Brand	REES52
Manufacturer	REES52 Nextion
Model	NX4024K032
Model Name	nextion NX4024K032
Product Dimensions	5 x 4 x 3 cm; 80 g
Item model number	NX4024K032
Mounting Hardware	Nextion HMI Display 1 Power Supply Test Board1 XH2.54 4P Wire*1
Number of items	1
Batteries Required	No
Has Auto Focus	No
Programmable Buttons	No
Manufacturer	REES52 Nextion
Item Weight	80 g

Nextion 3.2″ HMI Display Basic Series NX4024T032 LCD-TFT Resistive Touch Screen 400×240 Compatible for Arduino and Raspberry Pi, Suitable for 3D Printers, Vehicle HMI, Beauty Device, etc.
